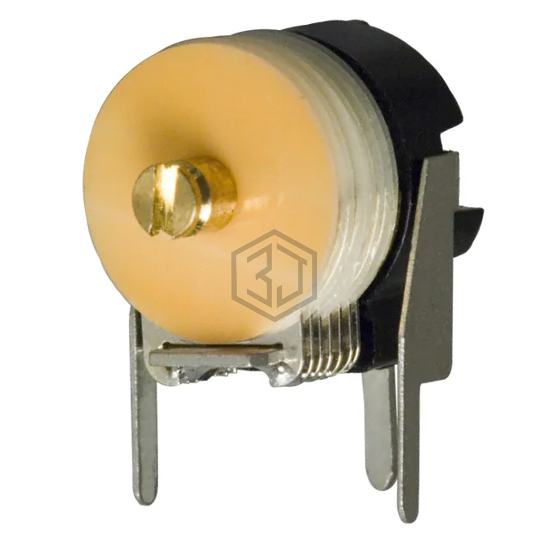

CAP TRIMMER 10-180PF 100V TH
GZD18100 is a Trimmers, Variable Capacitors manufactured by Sprague-Goodman. CAP TRIMMER 10-180PF 100V TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, size / dimension 0.433" Dia (11.00mm).
In Stock: 1,860
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance Range | 10 ~ 180pF |
| Adjustment Type | Side |
| Voltage - Rated | 100 V |
| Dielectric Material | Polycarbonate (PC) |
| Q @ Freq | 200 @ 1MHz |
| Size / Dimension | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Features | General Purpose |
GZD18100 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| GZD10100 | Sprague-Goodman | CAP TRIMMER 9-100PF 100V TH | 100% | View |
| GZC12100 | Sprague-Goodman | CAP TRIMMER 9-120PF 100V TH | 100% | View |
| GZD15100 | Sprague-Goodman | CAP TRIMMER 10-150PF 100V TH | 100% | View |
| GZC15100 | Sprague-Goodman | CAP TRIMMER 10-150PF 100V TH | 100% | View |
| PPZC80003 | Passive Plus | 8-80PF, 9.5MM TOP/BOTTOM ADJUST, | 100% | View |
| PPZC15100 | Passive Plus | 10-150PF, 9.5MM TOP/BOTTOM ADJUS | 100% | View |
Submit your RFQ for GZD18100 and get a quote within 24 hours.
