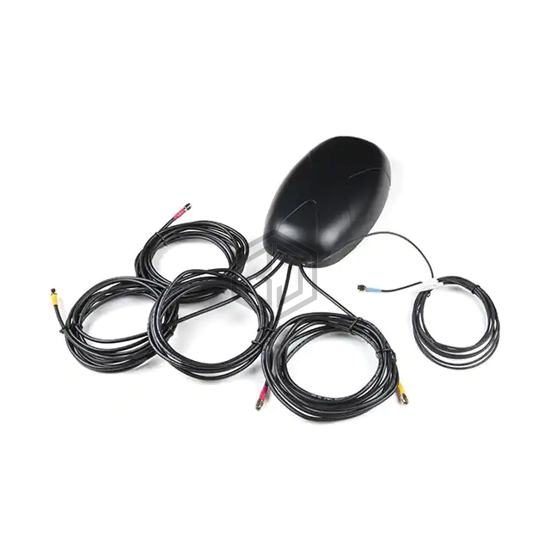

STEEDAN MA350 LOW PROFILE, 5-IN-
WRL-17732 is a RF Antennas manufactured by SparkFun Electronics. STEEDAN MA350 LOW PROFILE, 5-IN-. Key specifications: mounting type Magnetic, termination RP-SMA Male, SMA Male (2), ingress protection IP65, power - max 10 W.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 761MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.495GHz, 2.45GHz, 3.75GHz, 5.5GHz, 5.5375GHz, 6.525GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | Dome |
| Number of Bands | 14 |
| VSWR | - |
| Return Loss | -10dB |
| Gain | 1.6dBi, 2.3dBi, 5dBi, 3.4dBi, 1dBi, 1dBi, 1dBi, 6.6dBi, 5.9dBi, 4.2dBi, 5.4dBi, 7.4dBi, 3dBi, 3.6dBi |
| Power - Max | 10 W |
| Features | Cable - 3m, LNA, Filter |
| Termination | RP-SMA Male, SMA Male (2) |
| Ingress Protection | IP65 |
| Mounting Type | Magnetic |
| Height (Max) | 2.079" (52.80mm) |
| Applications | 4G, 5G, Beidou, Galileo, GLONASS, GPS, LTE, Wi-Fi |
Submit your RFQ for WRL-17732 and get a quote within 24 hours.
