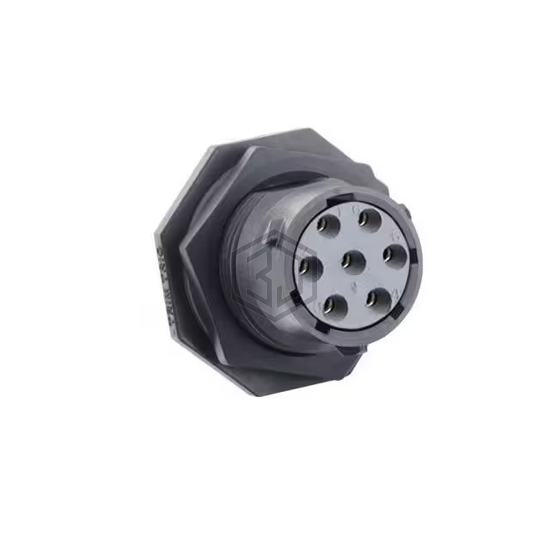

JAM NUT RECEPTACLE, WITHOUT BACK
UTSX714E7S is a Circular Connectors manufactured by Souriau-Sunbank by Eaton. JAM NUT RECEPTACLE, WITHOUT BACK. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 105°C, voltage rating 600V, color Black.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 7 (6 + PE) |
| Shell Size - Insert | 14-7 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 HB |
| Features | UV Resistant |
| Shielding | Unshielded |
| Current Rating (Amps) | 12A |
| Voltage Rating | 600V |
| Cable Opening | - |
| Operating Temperature | -40°C ~ 105°C |
Submit your RFQ for UTSX714E7S and get a quote within 24 hours.
