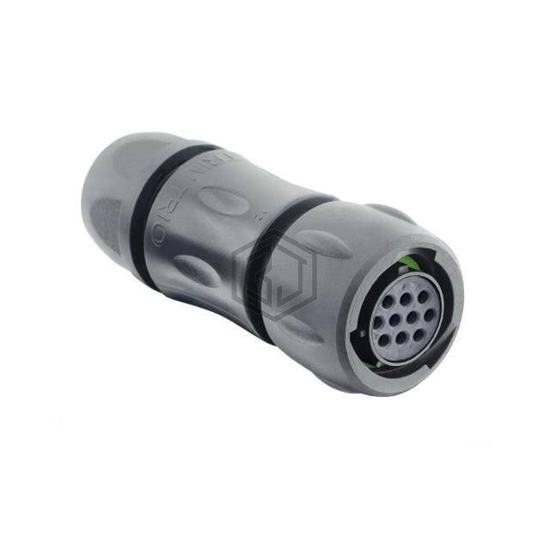

PLUG, WITH CABLE GLAND BACKSHELL
UTSX6JC1210S is a Circular Connectors - Housings manufactured by Souriau-Sunbank by Eaton. PLUG, WITH CABLE GLAND BACKSHELL. Key specifications: mounting type Free Hanging (In-Line), ingress protection IP68/IP69K - Dust Tight, Water Resistant, Waterproof, number of positions 10, connector type Plug Housing.
In Stock: 74
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug Housing |
| Type | For Female Sockets |
| Number of Positions | 10 |
| Shell Size - Insert | 12-10 |
| Shell Size, MIL | - |
| Contact Type | Crimp |
| Contact Size | 20 |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
| Housing Color | Black |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Coupling Nut, UV Resistant |
| Shielding | Unshielded |
