CONN HEADER R/A 6POS 5.08MM

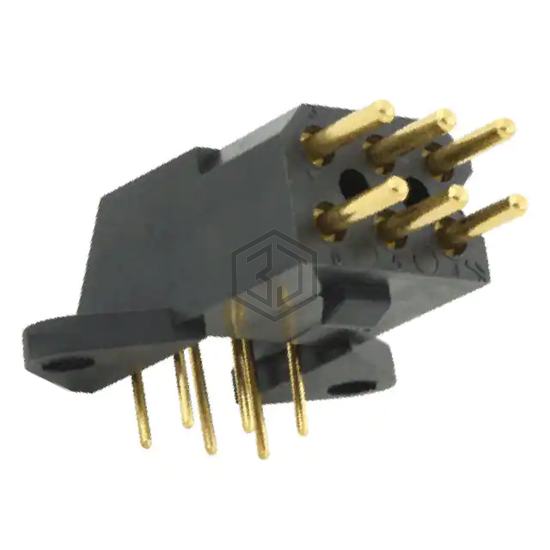

SMS6GE6 is a Rectangular Connectors - Headers, Male Pins manufactured by Souriau-Sunbank by Eaton. CONN HEADER R/A 6POS 5.08MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 105°C, contact material Brass, current rating (amps) 7.5A.
In Stock: 330
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.200" (5.08mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | 0.280" (7.11mm) |
| Contact Length - Post | 0.177" (4.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.469" (11.90mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyester, Glass Filled |
| Features | Mounting Flange |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | - |
Submit your RFQ for SMS6GE6 and get a quote within 24 hours.
