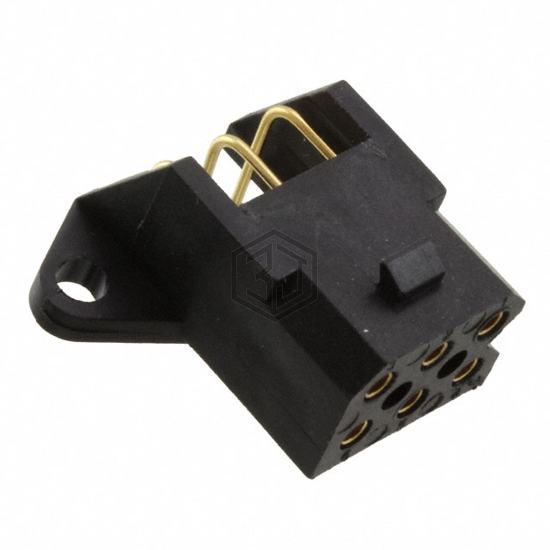

CONN RCPT 6POS 0.2 GOLD PCB R/A
SMS6GE5 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Souriau-Sunbank by Eaton. CONN RCPT 6POS 0.2 GOLD PCB R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 105°C, current rating (amps) 7.5A, termination Solder.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.200" (5.08mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) |
| Insulation Color | Black |
| Insulation Height | - |
| Contact Length - Post | 0.177" (4.50mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | - |
| Ingress Protection | IP40 |
| Features | Mounting Flange |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | - |
