CONN HEADER VERT 3POS 5.08MM

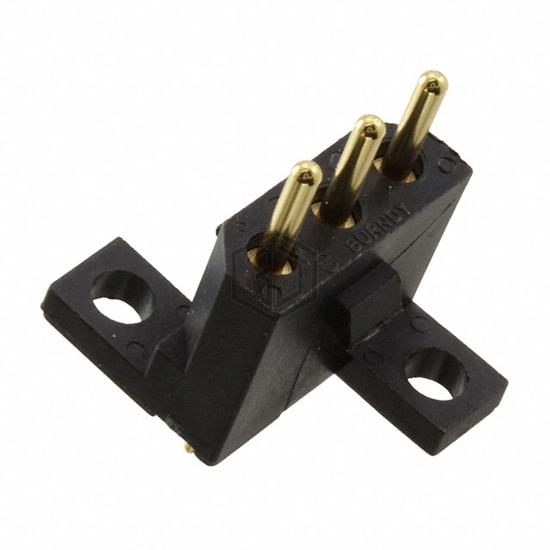

SMS3GE4 is a Rectangular Connectors - Headers, Male Pins manufactured by Souriau-Sunbank by Eaton. CONN HEADER VERT 3POS 5.08MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, contact material Brass, current rating (amps) 7.5A.
In Stock: 43
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | 0.280" (7.11mm) |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | 0.939" (23.85mm) |
| Insulation Height | 0.526" (13.35mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyester, Glass Filled |
| Features | Mounting Flange |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | - |
Submit your RFQ for SMS3GE4 and get a quote within 24 hours.
