CONN RCPT 24POS 0.2 GOLD PCB

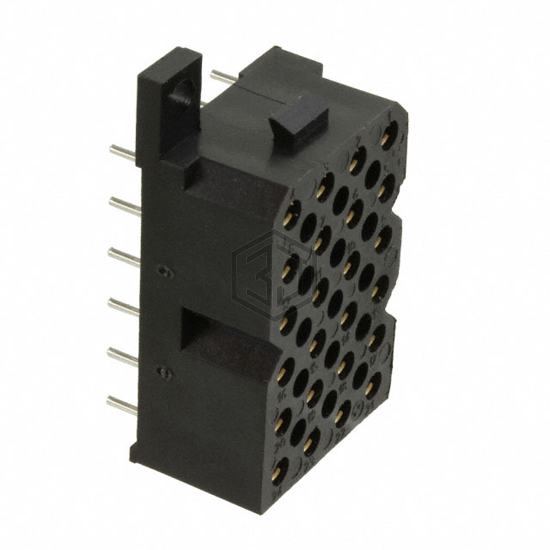

SMS24RE3S6 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Souriau-Sunbank by Eaton. CONN RCPT 24POS 0.2 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, current rating (amps) 5A, termination Solder.
In Stock: 88
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Rows | 6 |
| Row Spacing - Mating | 0.200" (5.08mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Insulation Color | Black |
| Insulation Height | 0.528" (13.40mm) |
| Contact Length - Post | 0.173" (4.40mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | IP40 |
| Features | Mounting Flange |
| Current Rating (Amps) | 5A |
| Voltage Rating | - |
Submit your RFQ for SMS24RE3S6 and get a quote within 24 hours.
