CONN HEADER VERT 12POS 5.08MM

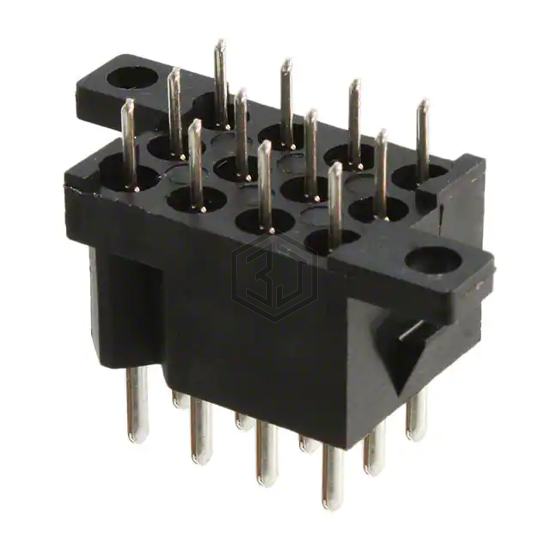

SMS12RE-4TR29 is a Rectangular Connectors - Headers, Male Pins manufactured by Souriau-Sunbank by Eaton. CONN HEADER VERT 12POS 5.08MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, contact material Copper Alloy, current rating (amps) 5A.
In Stock: 400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Positions | 12 |
| Number of Rows | 4 |
| Row Spacing - Mating | 0.200" (5.08mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | 0.280" (7.11mm) |
| Contact Length - Post | 0.173" (4.40mm) |
| Overall Contact Length | 0.972" (24.70mm) |
| Insulation Height | 0.520" (13.20mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyester, Glass Filled |
| Features | Mounting Flange |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 5A |
| Voltage Rating | - |
Submit your RFQ for SMS12RE-4TR29 and get a quote within 24 hours.
