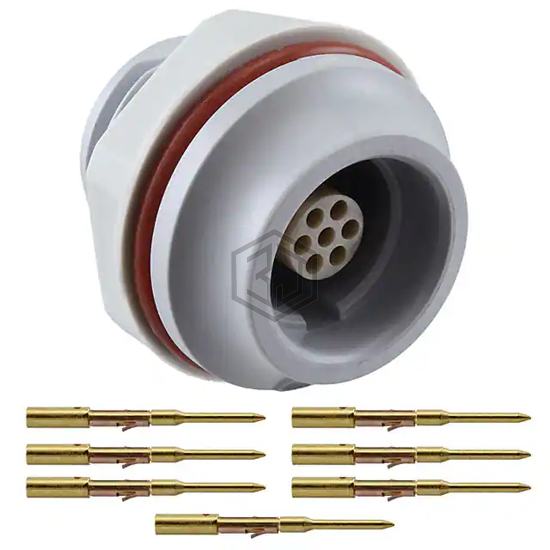

CONN RCPT FMALE 7POS GOLD CRIMP
JMXHH1G07FCUDSU is a Circular Connectors manufactured by Souriau-Sunbank by Eaton. CONN RCPT FMALE 7POS GOLD CRIMP. Key specifications: mounting type Panel Mount, operating temperature -20°C ~ 100°C, voltage rating 160V, color Light Gray.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 7 |
| Shell Size - Insert | 1-7 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Termination | Crimp |
| Fastening Type | Push-Pull |
| Orientation | G |
| Primary Material | Plastic |
| Shell Material | Polyetherimide (PEI) |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Light Gray |
| Ingress Protection | IP50/IP68 - Dust Protected, Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | - |
| Shielding | Unshielded |
| Current Rating (Amps) | 5A |
| Voltage Rating | 160V |
| Cable Opening | - |
| Operating Temperature | -20°C ~ 100°C |
Submit your RFQ for JMXHH1G07FCUDSU and get a quote within 24 hours.
