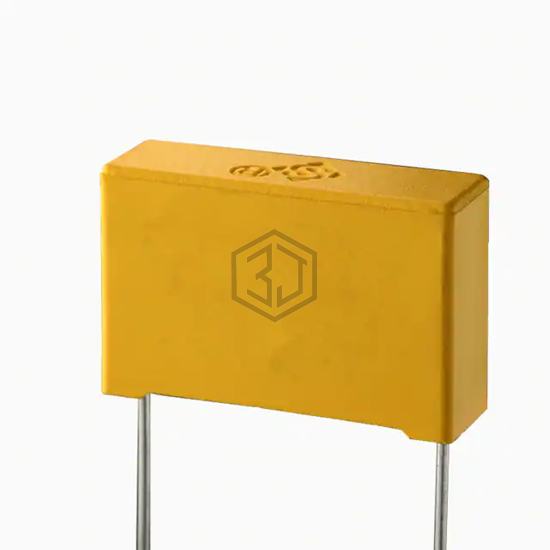

Songtian Electronics Co., Ltd - use 4378
X2 310VAC 0.68UF 10% P=22.5MM W2
X2Q3684KT1B0265170085ES0 is a Film Capacitors manufactured by Songtian Electronics Co., Ltd - use 4378. X2 310VAC 0.68UF 10% P=22.5MM W2. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage rating - ac 310V, package / case Radial.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.68 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 310V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.043" L x 0.335" W (26.50mm x 8.50mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F339MX246831MII2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 20% 630VDC RAD | 100% | View |
| F1778468M2KLB0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 20% 630VDC RAD | 100% | View |
| F339X146833MI02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 20% 800VDC RAD | 99% | View |
| 21580-06 | Iskra | KNB1560 U68 10% 275V L4 R22.5 | 98% | View |
| 684MSR630K | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.68UF 10% 630VDC RAD | 94% | View |
| MKP385468016JIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 160VDC RADIAL | 82% | View |
Submit your RFQ for X2Q3684KT1B0265170085ES0 and get a quote within 24 hours.
