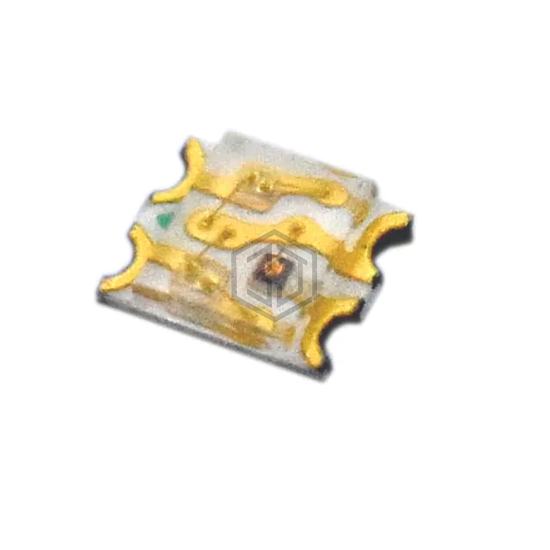

0605 5mA Red, Green, Yellow LED
SP0605E-3C-005MA is a LED Indication - Discrete manufactured by Solidlite. 0605 5mA Red, Green, Yellow LED. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.95V Green, 1.85V Red, 1.85V Yellow, package / case 0605 (1613 Metric), color Green, Red, Yellow.
In Stock: 9,960
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red, Yellow |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 235mcd Green, 42.5mcd Red, 42.5mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.25mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2.95V Green, 1.85V Red, 1.85V Yellow |
| Current - Test | 5mA Green, 5mA Red, 5mA Yellow |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 528nm Green, 625nm Red, 590nm Yellow |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0605 (1613 Metric) |
| Supplier Device Package | 0605 |
| Size / Dimension | 1.60mm L x 1.25mm W |
| Height (Max) | 0.50mm |
Submit your RFQ for SP0605E-3C-005MA and get a quote within 24 hours.
