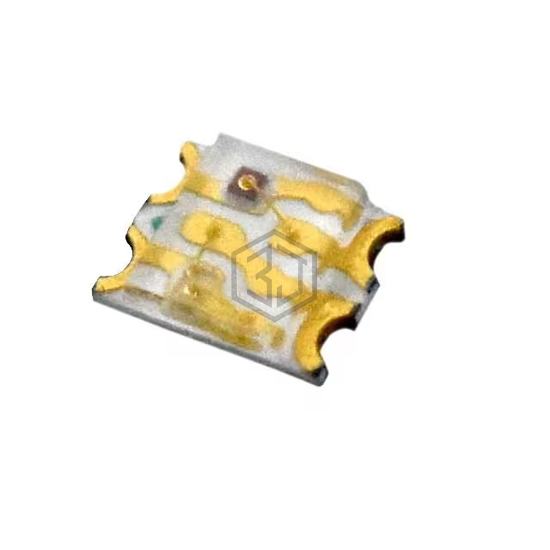

0605 5mA Orange & Green LED
SP0605E-2C is a LED Indication - Discrete manufactured by Solidlite. 0605 5mA Orange & Green LED. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.95V Green, 1.85V Orange, package / case 0605 (1613 Metric), color Green, Orange.
In Stock: 10,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Orange |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 112.5mcd Green, 40mcd Orange |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.25mm x 1.10mm |
| Voltage - Forward (Vf) (Typ) | 2.95V Green, 1.85V Orange |
| Current - Test | 5mA Green, 5mA Orange |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 525nm Green, 605nm Orange |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0605 (1613 Metric) |
| Supplier Device Package | 0605 |
| Size / Dimension | 1.60mm L x 1.25mm W |
| Height (Max) | 0.50mm |
Submit your RFQ for SP0605E-2C and get a quote within 24 hours.
