0605 5mA Red & Yellow Green LED

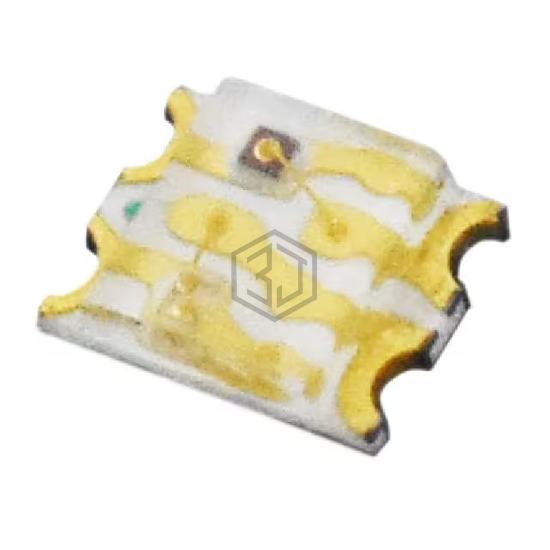

SP0605D-2C is a LED Indication - Discrete manufactured by Solidlite. 0605 5mA Red & Yellow Green LED. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.85V Red, 1.85V Yellow-Green, package / case 0605 (1613 Metric), color Red, Yellow-Green.
In Stock: 10,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Yellow-Green |
| Configuration | - |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 27.5mcd Red, 14mcd Yellow-Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 1.85V Red, 1.85V Yellow-Green |
| Current - Test | 5mA |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 570nm Yellow-Green |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0605 (1613 Metric) |
| Supplier Device Package | 0605 |
| Size / Dimension | 1.60mm L x 1.25mm W |
| Height (Max) | 0.50mm |
Submit your RFQ for SP0605D-2C and get a quote within 24 hours.
