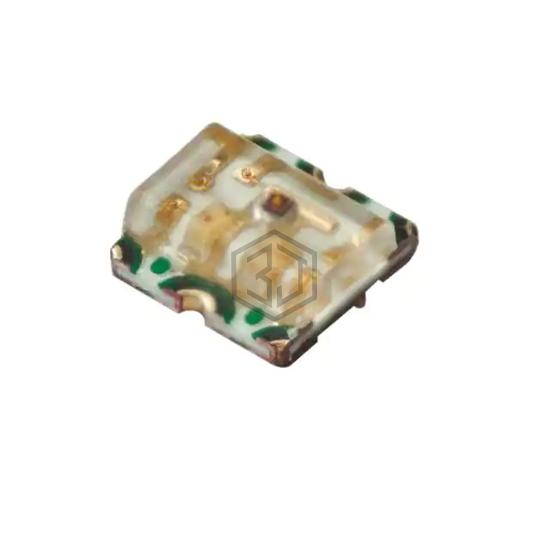

0606 5MA RGB LED
BAE0606A-3CL-005MA is a LED Indication - Discrete manufactured by Solidlite. 0606 5MA RGB LED. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 2.7V Green, 2.7V Blue, package / case 6-SMD, Flat Leads, color Red, Green, Blue (RGB).
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 125mcd Red, 340mcd Green, 50mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.7V Green, 2.7V Blue |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 621nm Red, 531nm Green, 471nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 6-SMD, Flat Leads |
| Supplier Device Package | - |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Height (Max) | 0.70mm |
