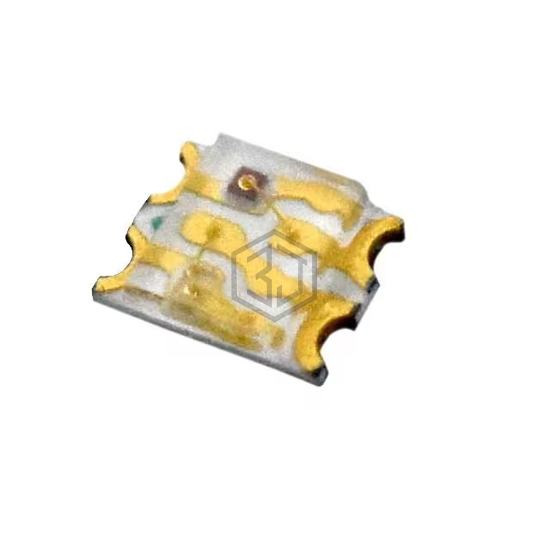

0605 20mA Red & Yellow Green LED
AP0605D-2C-020MA is a LED Indication - Discrete manufactured by Solidlite. 0605 20mA Red & Yellow Green LED. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Red, 2.1V Yellow-Green, package / case 0605 (1613 Metric), color Red, Yellow-Green.
In Stock: 10,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Yellow-Green |
| Configuration | - |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 150mcd Red, 45mcd Yellow-Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.25mm x 1.10mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 2.1V Yellow-Green |
| Current - Test | 20mA Red, 20mA Yellow-Green |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 570nm Yellow-Green |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0605 (1613 Metric) |
| Supplier Device Package | 0605 |
| Size / Dimension | 1.60mm L x 1.25mm W |
| Height (Max) | 0.50mm |
Submit your RFQ for AP0605D-2C-020MA and get a quote within 24 hours.
