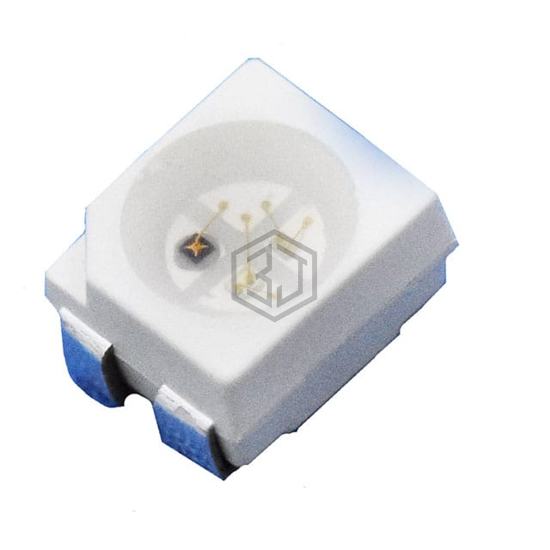

1411 20MA RGB LED
AL1411C-3C is a LED Indication - Discrete manufactured by Solidlite. 1411 20MA RGB LED. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Red, 3.2V Green, 3.2V Blue, package / case 1411 (3528 Metric), color Red, Green, Blue (RGB).
In Stock: 1,940
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 275mcd Red, 900mcd Green, 275mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 528nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 1411 (3528 Metric) |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 1.90mm |
Submit your RFQ for AL1411C-3C and get a quote within 24 hours.
