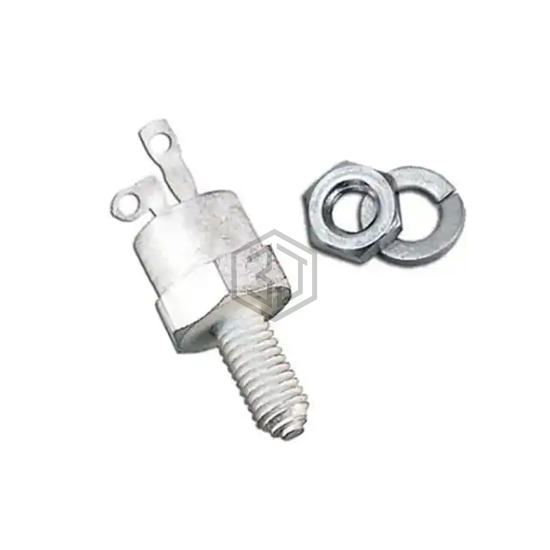

2N1774
TO64 8 AMP SCR
2N1774 is a Thyristors - SCRs manufactured by Solid State Inc.. TO64 8 AMP SCR. Key specifications: mounting type Stud Mount, operating temperature -65°C ~ 125°C, package / case TO-208AB, TO-64-3, Stud.
In Stock: 1,520
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 200 V |
| Voltage - Gate Trigger (Vgt) (Max) | 10 V |
| Current - Gate Trigger (Igt) (Max) | 2 A |
| Voltage - On State (Vtm) (Max) | - |
| Current - On State (It (AV)) (Max) | 4.7 A |
| Current - On State (It (RMS)) (Max) | 7.4 A |
| Current - Hold (Ih) (Max) | 8 mA |
| Current - Off State (Max) | 6 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 60A |
| SCR Type | Standard Recovery |
| Operating Temperature | -65°C ~ 125°C |
| Mounting Type | Stud Mount |
| Package / Case | TO-208AB, TO-64-3, Stud |
| Supplier Device Package | TO-64 |
Frequently Asked Questions
2N1774 is a Thyristors - SCRs manufactured by Solid State Inc.. TO64 8 AMP SCR
The mounting type of 2N1774 is Stud Mount.
The operating temperature range of 2N1774 is -65°C ~ 125°C.
The package type of 2N1774 is TO-208AB, TO-64-3, Stud.
