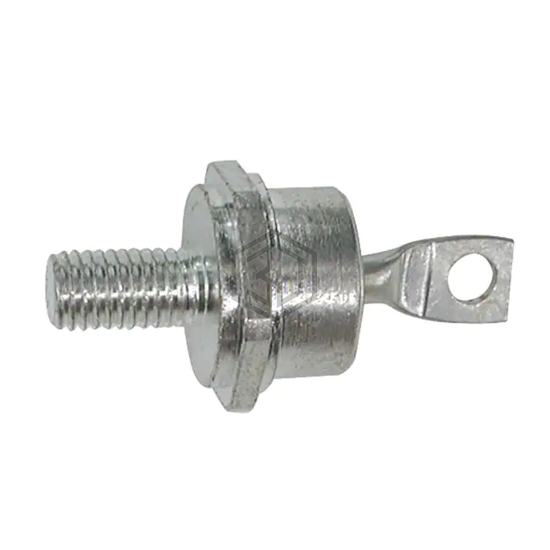

1N2284
DO5 40 AMP SILICON RECTFIER
1N2284 is a Diodes - Rectifiers - Single manufactured by Solid State Inc.. DO5 40 AMP SILICON RECTFIER. Key specifications: mounting type Stud Mount, package / case DO-203AB, DO-5, Stud.
In Stock: 50
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 500 V |
| Current - Average Rectified (Io) | 40A |
| Voltage - Forward (Vf) (Max) @ If | 1.19 V @ 90 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 10 µA @ 500 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Stud Mount |
| Package / Case | DO-203AB, DO-5, Stud |
| Supplier Device Package | DO-5 |
| Operating Temperature - Junction | -65°C ~ 200°C |
Frequently Asked Questions
1N2284 is a Diodes - Rectifiers - Single manufactured by Solid State Inc.. DO5 40 AMP SILICON RECTFIER
The mounting type of 1N2284 is Stud Mount.
The package type of 1N2284 is DO-203AB, DO-5, Stud.
