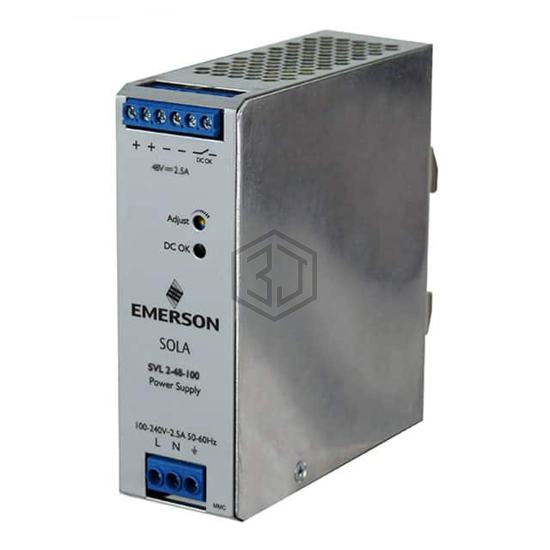

120W 48V DIN PS 85-264VAC
SVL248100 is a Industrial, DIN Rail Power Supplies manufactured by SolaHD. 120W 48V DIN PS 85-264VAC. Key specifications: operating temperature -20°C ~ 70°C (With Derating), current - output (max) 2.5A, size / dimension 4.63" L x 1.57" W x 4.84" H (117.6mm x 39.9mm x 122.9mm), number of outputs 1.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 375V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 120W |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 88% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Universal Input |
| Size / Dimension | 4.63" L x 1.57" W x 4.84" H (117.6mm x 39.9mm x 122.9mm) |
| Approval Agency | CE, cULus, cURus |
| Standard Number | - |
Submit your RFQ for SVL248100 and get a quote within 24 hours.
