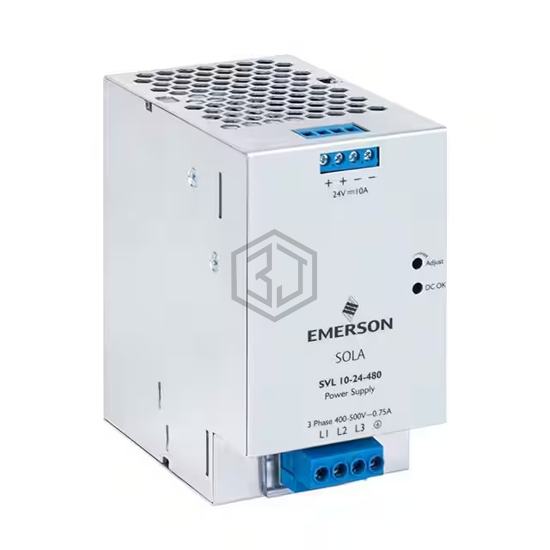

AC/DC CONVERTER 24V 240W
SVL1024480 is a Industrial, DIN Rail Power Supplies manufactured by SolaHD. AC/DC CONVERTER 24V 240W. Key specifications: operating temperature -25°C ~ 80°C (With Derating), current - output (max) 10A, size / dimension 4.62" L x 2.76" W x 4.76" H (117.3mm x 70.0mm x 121.0mm), number of outputs 1.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 320 ~ 575 VAC (3PH), 360 ~ 575 VAC (2PH) |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 240W |
| Voltage - Isolation | 4 kV |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -25°C ~ 80°C (With Derating) |
| Features | Adjustable Output, PFC |
| Size / Dimension | 4.62" L x 2.76" W x 4.76" H (117.3mm x 70.0mm x 121.0mm) |
| Approval Agency | cCSAus, CE, cURus, cULus, UL |
| Standard Number | 62368-1; 60950-1; UL 508 |
Submit your RFQ for SVL1024480 and get a quote within 24 hours.
