92W 24V DIN PLASTIC 115/230V

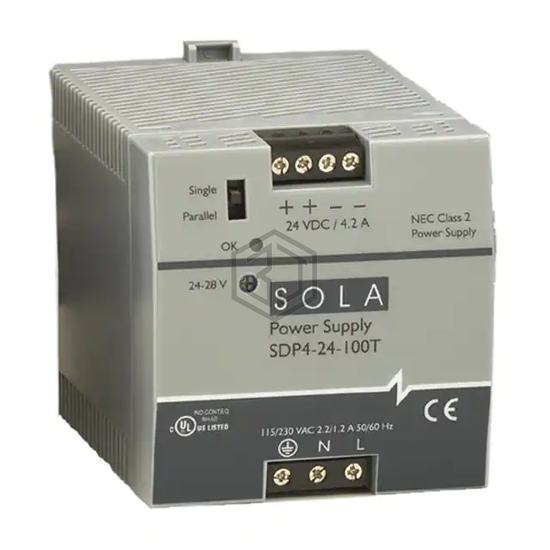

SDP4-24-100LT is a Industrial, DIN Rail Power Supplies manufactured by SolaHD. 92W 24V DIN PLASTIC 115/230V. Key specifications: operating temperature -10°C ~ 70°C (With Derating), current - output (max) 3.8A, size / dimension 3.80" L x 2.85" W x 2.95" H (96.5mm x 72.4mm x 74.9mm), number of outputs 1.
In Stock: 42
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 132 VAC, 176 ~ 264 VAC |
| DC Voltage - Input (Min) | 210V |
| DC Voltage - Input (Max) | 375V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 3.8A |
| Power (Watts) | 91W |
| Voltage - Isolation | - |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 88% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20 |
| Size / Dimension | 3.80" L x 2.85" W x 2.95" H (96.5mm x 72.4mm x 74.9mm) |
| Approval Agency | CE, cULus, cURus |
| Standard Number | - |
Submit your RFQ for SDP4-24-100LT and get a quote within 24 hours.
