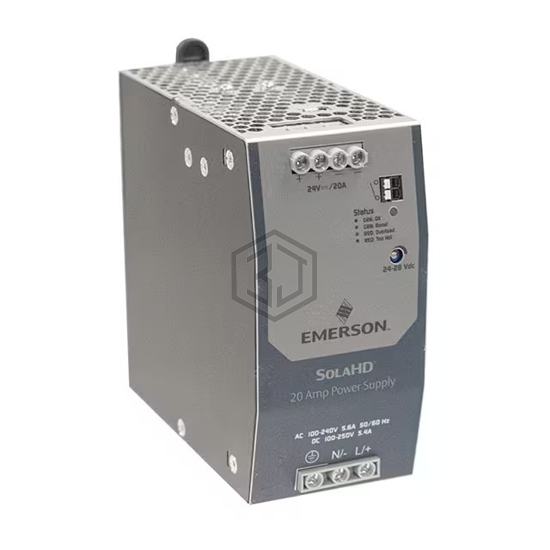

DIN P/S SDN-D 480W 24V 20A 1PH I
SDN2024100D is a Industrial, DIN Rail Power Supplies manufactured by SolaHD. DIN P/S SDN-D 480W 24V 20A 1PH I. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 5.00" L x 2.40" W x 4.80" H (127.0mm x 61.0mm x 121.9mm), number of outputs 1.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 90V |
| DC Voltage - Input (Max) | 275V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 94.2% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Size / Dimension | 5.00" L x 2.40" W x 4.80" H (127.0mm x 61.0mm x 121.9mm) |
| Approval Agency | CE, cULus, cURus |
| Standard Number | 60950-1; 61010-1; 62368-1 |
Submit your RFQ for SDN2024100D and get a quote within 24 hours.
