240W 24V DIN T/P 380/480V IN IEC

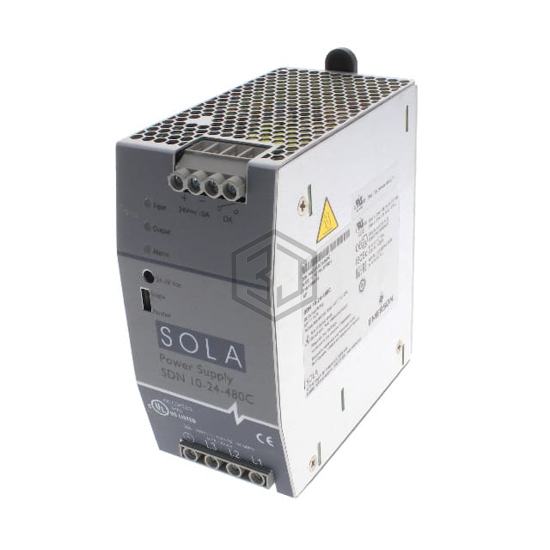

SDN10-24-480C is a Industrial, DIN Rail Power Supplies manufactured by SolaHD. 240W 24V DIN T/P 380/480V IN IEC. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 4.36" L x 2.36" W x 4.85" H (110.7mm x 59.9mm x 123.2mm), number of outputs 1.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 320 ~ 540 VAC |
| DC Voltage - Input (Min) | 550V |
| DC Voltage - Input (Max) | 650V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 240W |
| Voltage - Isolation | - |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 91% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20 |
| Size / Dimension | 4.36" L x 2.36" W x 4.85" H (110.7mm x 59.9mm x 123.2mm) |
| Approval Agency | CE, cULus, cURus, EAC |
| Standard Number | - |
Submit your RFQ for SDN10-24-480C and get a quote within 24 hours.
