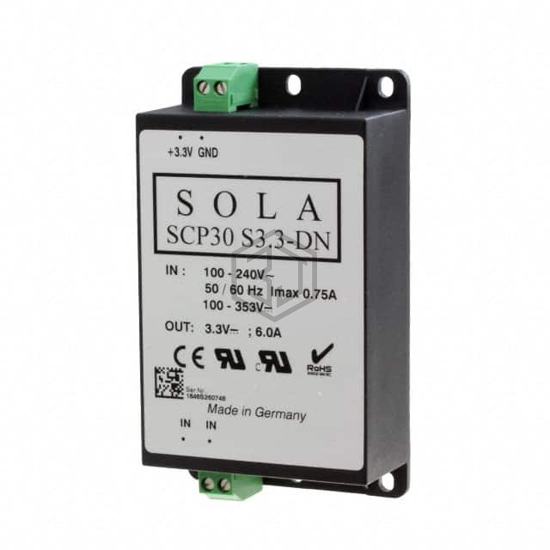

30W 3.3V SW PWR SPLY DIN
SCP30S3.3-DN is a Industrial, DIN Rail Power Supplies manufactured by SolaHD. 30W 3.3V SW PWR SPLY DIN. Key specifications: operating temperature -25°C ~ 65°C, current - output (max) 6A, size / dimension 2.55" L x 1.29" W x 4.71" H (65.0mm x 33.0mm x 120.0mm), number of outputs 1.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 100V |
| DC Voltage - Input (Max) | 375V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 20W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 62% |
| Operating Temperature | -25°C ~ 65°C |
| Features | IP20, Universal Input |
| Size / Dimension | 2.55" L x 1.29" W x 4.71" H (65.0mm x 33.0mm x 120.0mm) |
| Approval Agency | CE, cURus |
| Standard Number | - |
