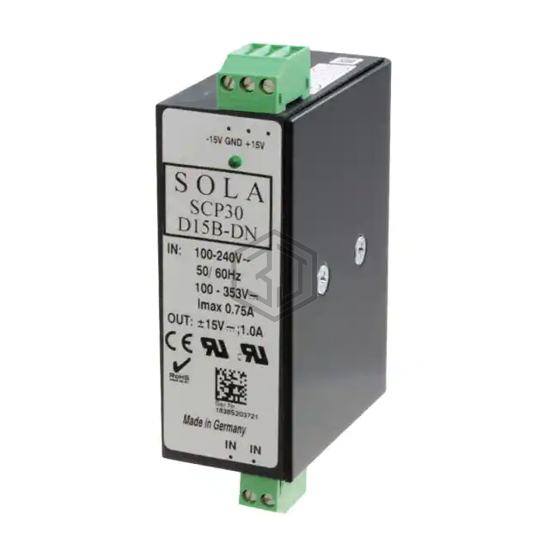

30W 15/15V SW P S SLIM DIN
SCP30D15B-DN is a Industrial, DIN Rail Power Supplies manufactured by SolaHD. 30W 15/15V SW P S SLIM DIN. Key specifications: operating temperature -25°C ~ 65°C, current - output (max) 1A, 1A, size / dimension 2.67" L x 1.37" W x 4.43" H (68.0mm x 35.0mm x 113.0mm), number of outputs 2.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 2 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 100V |
| DC Voltage - Input (Max) | 375V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 1A, 1A |
| Power (Watts) | 30W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 68% |
| Operating Temperature | -25°C ~ 65°C |
| Features | IP20, Universal Input |
| Size / Dimension | 2.67" L x 1.37" W x 4.43" H (68.0mm x 35.0mm x 113.0mm) |
| Approval Agency | CE, cURus |
| Standard Number | - |
Submit your RFQ for SCP30D15B-DN and get a quote within 24 hours.
