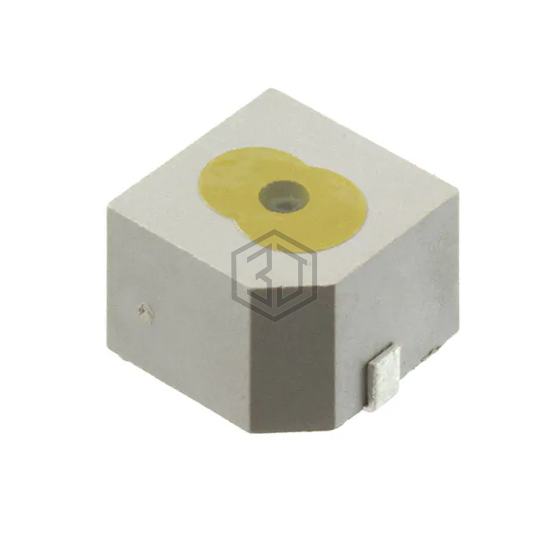

BUZZER MAGNETIC 5V 12.8X12.8 SMD
WST-1307S is a Alarms, Buzzers, and Sirens manufactured by Soberton Inc.. BUZZER MAGNETIC 5V 12.8X12.8 SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C, voltage - rated 5 V, current - supply 40mA.
In Stock: 4,668
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 3 ~ 7V |
| Frequency | 2.4kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 5V, 10cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
