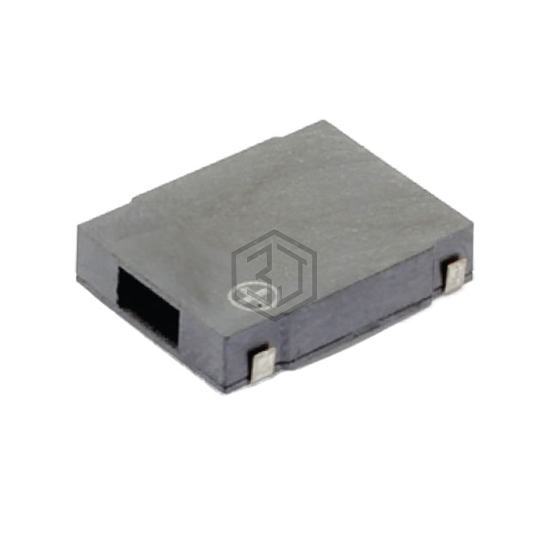

BUZZER MAGNETIC 3V 11X14MM SMD
ST-1411 is a Alarms, Buzzers, and Sirens manufactured by Soberton Inc.. BUZZER MAGNETIC 3V 11X14MM SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 80°C, voltage - rated 3 V, current - supply 80mA.
In Stock: 1,072
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 2 ~ 4V |
| Frequency | 3.2kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 87dB @ 3V, 10cm |
| Current - Supply | 80mA |
| Port Location | Side |
| Operating Temperature | -30°C ~ 80°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.433" L x 0.551" W (11.00mm x 14.00mm) |
| Height - Seated (Max) | 0.130" (3.30mm) |
Submit your RFQ for ST-1411 and get a quote within 24 hours.
