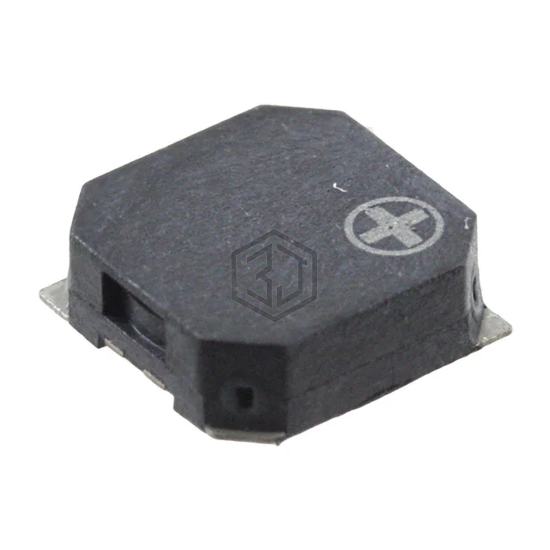

BUZZER MAGN 3.6V 8.5X8.5MM SMD
ST-03BHT is a Alarms, Buzzers, and Sirens manufactured by Soberton Inc.. BUZZER MAGN 3.6V 8.5X8.5MM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 70°C, voltage - rated 3.6 V, current - supply 100mA.
In Stock: 4,975
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3.6 V |
| Voltage Range | 2.5 ~ 4.5V |
| Frequency | 2.713kHz |
| Technology | Magnetic |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 3.6V, 10cm |
| Current - Supply | 100mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
| Height - Seated (Max) | 0.130" (3.30mm) |
Submit your RFQ for ST-03BHT and get a quote within 24 hours.
