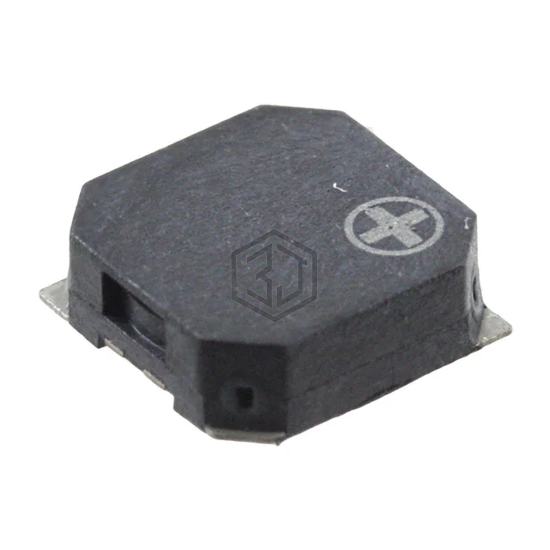

BUZZER MAGNETIC 3V 7.5X7.5MM SMD
ST-025BLA is a Alarms, Buzzers, and Sirens manufactured by Soberton Inc.. BUZZER MAGNETIC 3V 7.5X7.5MM SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C, voltage - rated 3 V, current - supply 70mA.
In Stock: 2,989
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 2 ~ 4V |
| Frequency | 2.5kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 3V, 10cm |
| Current - Supply | 70mA |
| Port Location | Side |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.295" L x 0.295" W (7.50mm x 7.50mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for ST-025BLA and get a quote within 24 hours.
