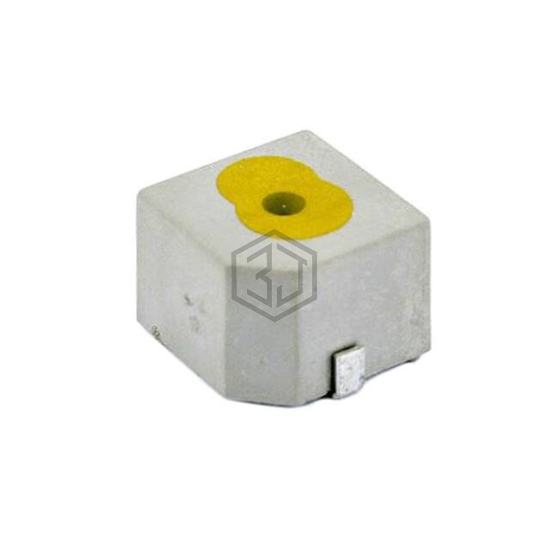

BUZZER PIEZO 12V 14.8X14.8MM SMD
PT-1507 is a Alarms, Buzzers, and Sirens manufactured by Soberton Inc.. BUZZER PIEZO 12V 14.8X14.8MM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 70°C, voltage - rated 12 V, current - supply 31mA.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 1 ~ 20V |
| Frequency | 5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 12V, 10cm |
| Current - Supply | 31mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.583" L x 0.583" W (14.80mm x 14.80mm) |
| Height - Seated (Max) | 0.280" (7.10mm) |
Submit your RFQ for PT-1507 and get a quote within 24 hours.
