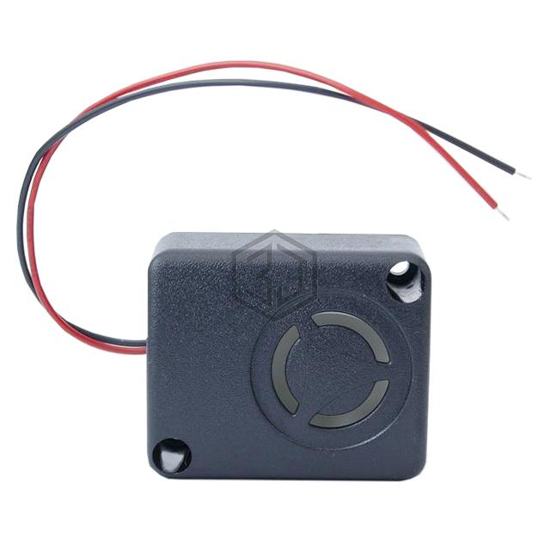

BUZZER PIEZO 12V 47X39MM FLANGE
PB-4739NL is a Alarms, Buzzers, and Sirens manufactured by Soberton Inc.. BUZZER PIEZO 12V 47X39MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 60°C, voltage - rated 12 V, current - supply 120mA.
In Stock: 96
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 9 ~ 15V |
| Frequency | 2.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 105dB @ 12V, 30cm |
| Current - Supply | 120mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.850" L x 1.535" W (47.00mm x 39.00mm) |
| Height - Seated (Max) | 0.925" (23.50mm) |
