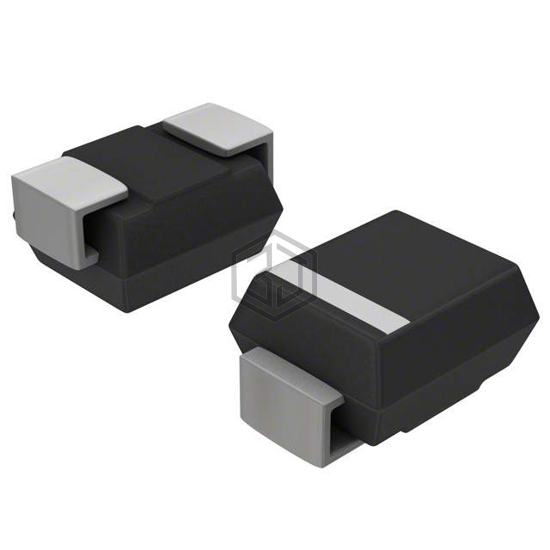

SD560C
DIODE GEN PURP 600V 5A SMC
SD560C is a Diodes - Rectifiers - Single manufactured by SMC Diode Solutions. DIODE GEN PURP 600V 5A SMC. Key specifications: mounting type Surface Mount, package / case DO-214AB, SMC.
In Stock: 12,595
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 5 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 9 µA @ 600 V |
| Capacitance @ Vr, F | 50pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC (DO-214AB) |
| Operating Temperature - Junction | -55°C ~ 125°C |
Frequently Asked Questions
SD560C is a Diodes - Rectifiers - Single manufactured by SMC Diode Solutions. DIODE GEN PURP 600V 5A SMC
The mounting type of SD560C is Surface Mount.
The package type of SD560C is DO-214AB, SMC.
