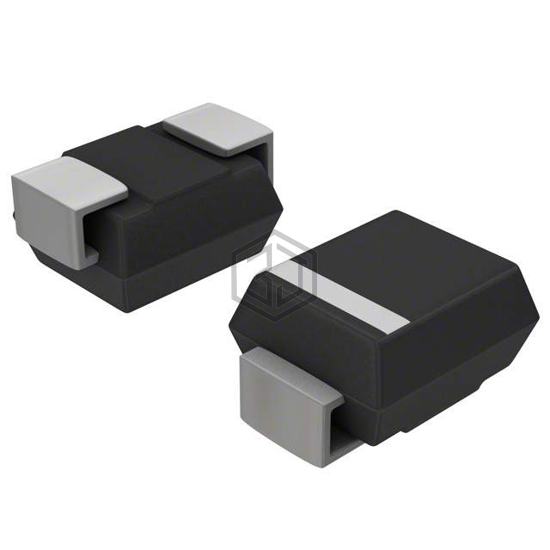

SD560B
DIODE GEN PURP 600V 5A SMB
SD560B is a Diodes - Rectifiers - Single manufactured by SMC Diode Solutions. DIODE GEN PURP 600V 5A SMB. Key specifications: mounting type Surface Mount, package / case DO-214AA, SMB.
In Stock: 187,422
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 5 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 9 µA @ 600 V |
| Capacitance @ Vr, F | 50pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB (DO-214AA) |
| Operating Temperature - Junction | -65°C ~ 175°C |
Frequently Asked Questions
SD560B is a Diodes - Rectifiers - Single manufactured by SMC Diode Solutions. DIODE GEN PURP 600V 5A SMB
The mounting type of SD560B is Surface Mount.
The package type of SD560B is DO-214AA, SMB.
