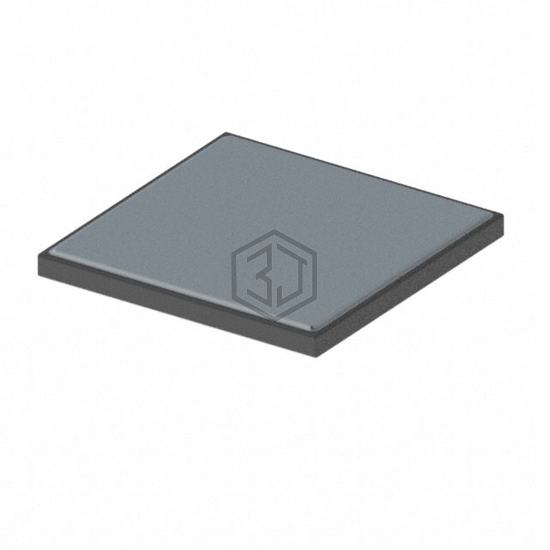

SD125SA45B.T
PIV 45V IO 15A CHIP SIZE 125MIL
SD125SA45B.T is a Diodes - Rectifiers - Single manufactured by SMC Diode Solutions. PIV 45V IO 15A CHIP SIZE 125MIL. Key specifications: mounting type Surface Mount, package / case Die.
In Stock: 100
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Current - Average Rectified (Io) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 560 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 1.5 mA @ 45 V |
| Capacitance @ Vr, F | 800pF @ 5V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | Die |
| Supplier Device Package | Die |
| Operating Temperature - Junction | -55°C ~ 150°C |
Frequently Asked Questions
SD125SA45B.T is a Diodes - Rectifiers - Single manufactured by SMC Diode Solutions. PIV 45V IO 15A CHIP SIZE 125MIL
The mounting type of SD125SA45B.T is Surface Mount.
The package type of SD125SA45B.T is Die.
