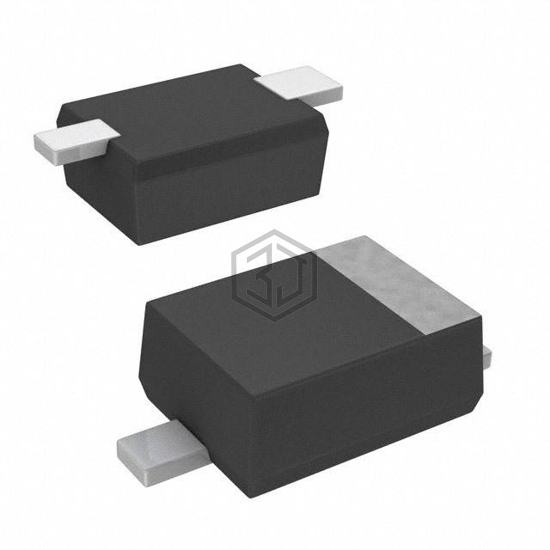

SD05
TVS ARRAY 5V SOD-323
SD05 is a TVS - Diodes manufactured by SMC Diode Solutions. TVS ARRAY 5V SOD-323. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case SC-76, SOD-323.
In Stock: 2,615
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 14.5V |
| Current - Peak Pulse (10/1000µs) | 24A (8/20µs) |
| Power - Peak Pulse | 350W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 350pF @ 1MHz (Max) |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
Frequently Asked Questions
SD05 is a TVS - Diodes manufactured by SMC Diode Solutions. TVS ARRAY 5V SOD-323
The mounting type of SD05 is Surface Mount.
The operating temperature range of SD05 is -55°C ~ 125°C (TJ).
The package type of SD05 is SC-76, SOD-323.
