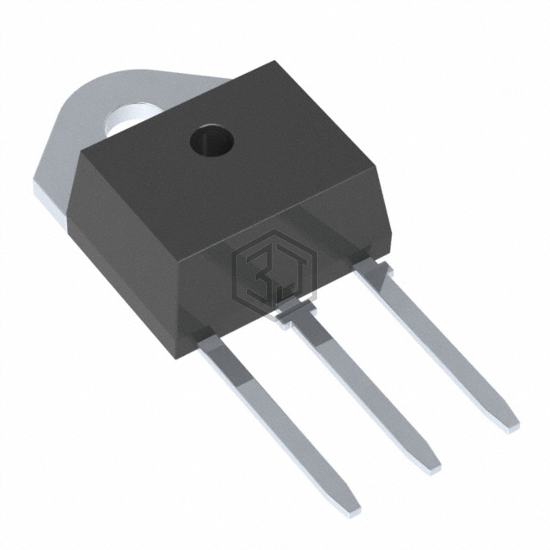

SCT855Z
SCR 800V 55A TO3P
SCT855Z is a Thyristors - SCRs manufactured by SMC Diode Solutions. SCR 800V 55A TO3P. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-3P-3, SC-65-3.
In Stock: 428
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 800 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - On State (It (AV)) (Max) | - |
| Current - On State (It (RMS)) (Max) | 55 A |
| Current - Hold (Ih) (Max) | 80 mA |
| Current - Off State (Max) | 10 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 520A @ 50Hz |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3P Insulated |
Frequently Asked Questions
SCT855Z is a Thyristors - SCRs manufactured by SMC Diode Solutions. SCR 800V 55A TO3P
The mounting type of SCT855Z is Through Hole.
The operating temperature range of SCT855Z is -40°C ~ 125°C (TJ).
The package type of SCT855Z is TO-3P-3, SC-65-3.
