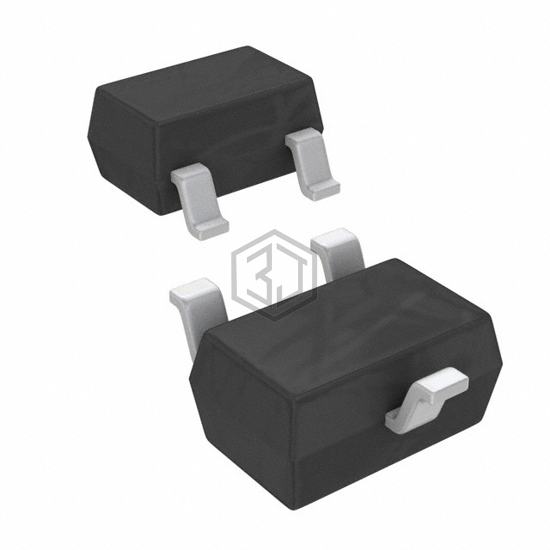

BAT54SW
DIODE SCHOTTKY 30V 100MA SOT323
BAT54SW is a Diodes - Rectifiers - Arrays manufactured by SMC Diode Solutions. DIODE SCHOTTKY 30V 100MA SOT323. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323.
In Stock: 38,471
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Configuration | 1 Pair Series Connection |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) (per Diode) | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Operating Temperature - Junction | 125°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
Frequently Asked Questions
BAT54SW is a Diodes - Rectifiers - Arrays manufactured by SMC Diode Solutions. DIODE SCHOTTKY 30V 100MA SOT323
The mounting type of BAT54SW is Surface Mount.
The package type of BAT54SW is SC-70, SOT-323.
