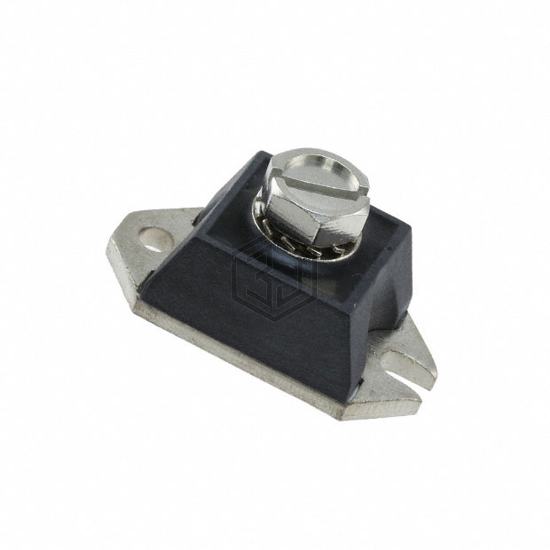

242NQ030R-1
240A, 30V, PRM1-1, POWER MODULES
242NQ030R-1 is a Diodes - Rectifiers - Single manufactured by SMC Diode Solutions. 240A, 30V, PRM1-1, POWER MODULES. Key specifications: mounting type Chassis Mount, package / case HALF-PAK.
In Stock: 31
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 240A |
| Voltage - Forward (Vf) (Max) @ If | 510 mV @ 240 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 20 mA @ 30 V |
| Capacitance @ Vr, F | 11500pF @ 5V, 1MHz |
| Mounting Type | Chassis Mount |
| Package / Case | HALF-PAK |
| Supplier Device Package | PRM1-1 (Half Pak Module) |
| Operating Temperature - Junction | -55°C ~ 150°C |
Frequently Asked Questions
242NQ030R-1 is a Diodes - Rectifiers - Single manufactured by SMC Diode Solutions. 240A, 30V, PRM1-1, POWER MODULES
The mounting type of 242NQ030R-1 is Chassis Mount.
The package type of 242NQ030R-1 is HALF-PAK.
