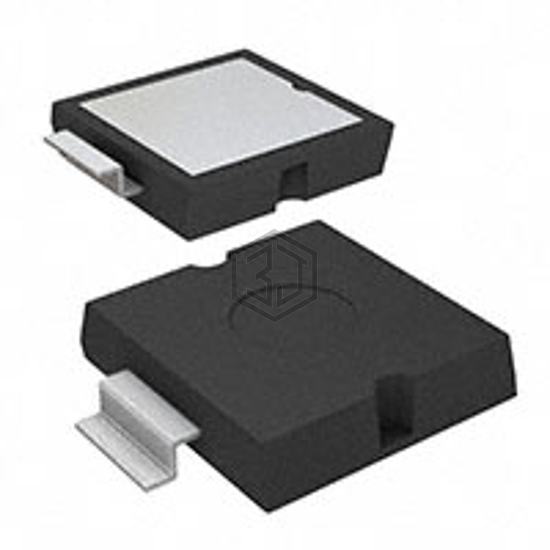

123SPD100A
DIODE SCHOTTKY 100V 120A SPD-4
123SPD100A is a Diodes - Rectifiers - Single manufactured by SMC Diode Solutions. DIODE SCHOTTKY 100V 120A SPD-4. Key specifications: mounting type Surface Mount, package / case SPD-4.
In Stock: 257
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 120A |
| Voltage - Forward (Vf) (Max) @ If | 870 mV @ 120 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 2 mA @ 100 V |
| Capacitance @ Vr, F | 2400pF @ 5V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SPD-4 |
| Supplier Device Package | SPD-4 |
| Operating Temperature - Junction | -55°C ~ 175°C |
Frequently Asked Questions
123SPD100A is a Diodes - Rectifiers - Single manufactured by SMC Diode Solutions. DIODE SCHOTTKY 100V 120A SPD-4
The mounting type of 123SPD100A is Surface Mount.
The package type of 123SPD100A is SPD-4.
