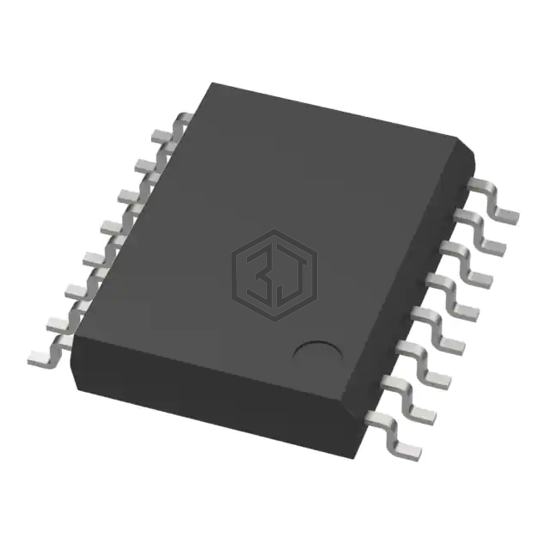

DGTL ISO 5KV 1CH GATE DVR 16SOIC
SI8285BD-IS is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. DGTL ISO 5KV 1CH GATE DVR 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-SOIC (0.295", 7.50mm Width), approval agency CQC, CSA, UR, VDE.
In Stock: 6,089
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 50ns, 50ns |
| Pulse Width Distortion (Max) | 5ns |
| Rise / Fall Time (Typ) | 5.5ns, 8.5ns |
| Current - Output High, Low | 2.5A, 3A |
| Current - Peak Output | 4A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 10V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Approval Agency | CQC, CSA, UR, VDE |
Submit your RFQ for SI8285BD-IS and get a quote within 24 hours.
