DGTL ISO 2.5KV GATE DRVR 14LGA

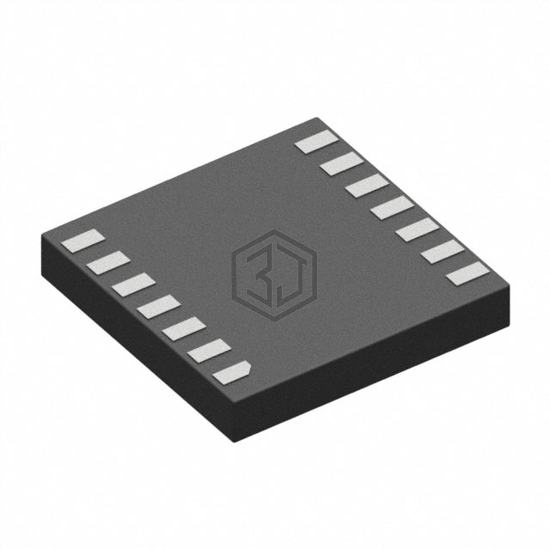

SI8274AB1-IM1R is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. DGTL ISO 2.5KV GATE DRVR 14LGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-VDFN, approval agency CQC, CSA, UR, VDE.
In Stock: 5,855
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 2 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 200kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 60ns |
| Pulse Width Distortion (Max) | 19ns |
| Rise / Fall Time (Typ) | 10.5ns, 13.3ns |
| Current - Output High, Low | 1.8A, 4A |
| Current - Peak Output | 4A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 4.2V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-VDFN |
| Supplier Device Package | 14-QFN (5x5) |
| Approval Agency | CQC, CSA, UR, VDE |
Submit your RFQ for SI8274AB1-IM1R and get a quote within 24 hours.
