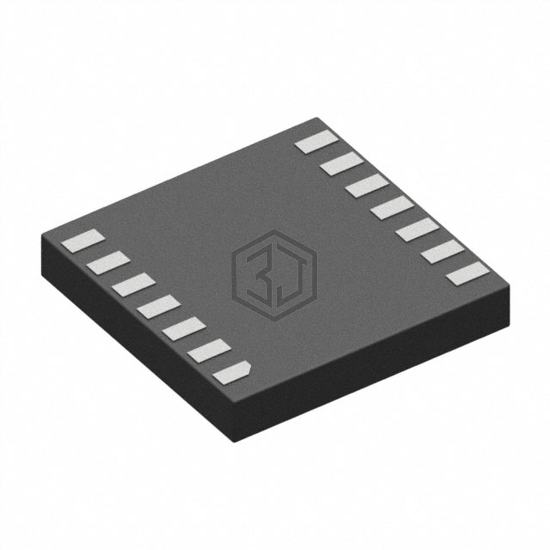

5KV GATE DRIVER 14-QFN
SI823H3CB-IM1R is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. 5KV GATE DRIVER 14-QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-VDFN, approval agency CQC, CSA, UL, VDE.
In Stock: 1,632
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 125kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 116ns, 116ns |
| Pulse Width Distortion (Max) | 5ns |
| Rise / Fall Time (Typ) | 12ns, 12ns (Max) |
| Current - Output High, Low | 4A, 4A |
| Current - Peak Output | 6A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 5.5V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-VDFN |
| Supplier Device Package | 14-QFN (5x5) |
| Approval Agency | CQC, CSA, UL, VDE |
Submit your RFQ for SI823H3CB-IM1R and get a quote within 24 hours.
