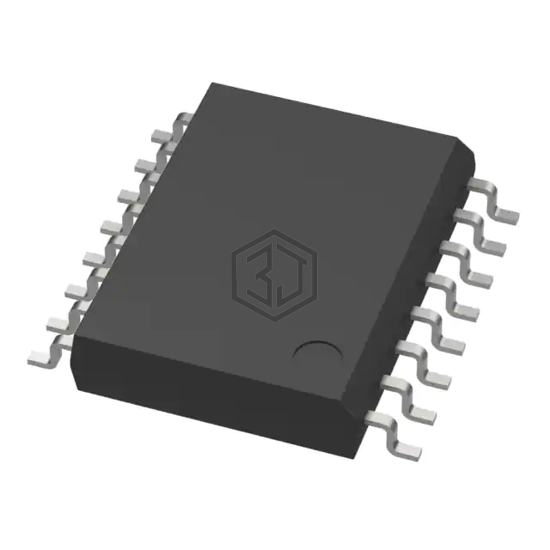

DGTL ISO 5KV 1CH GATE DVR 16SOIC
SI8220BD-D-IS is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. DGTL ISO 5KV 1CH GATE DVR 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 2.5V (Max), package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 1,472
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 30kV/µs (Typ) |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 40ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 20ns, 20ns (Max) |
| Current - Output High, Low | 1.5A, 2.5A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 2.5V (Max) |
| Current - DC Forward (If) (Max) | 30 mA |
| Voltage - Output Supply | 9.4V ~ 24V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Approval Agency | CQC, CSA, UR, VDE |
Submit your RFQ for SI8220BD-D-IS and get a quote within 24 hours.
