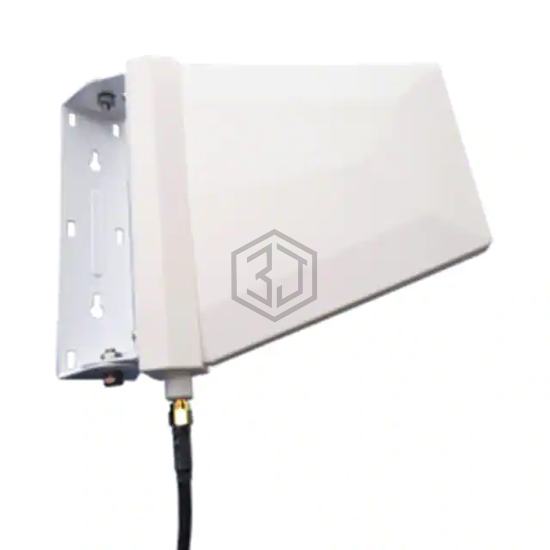

5G/4G/3G/2G YAGI ANTENNA SMA FEM
OSCAR20A/5M/SMAM/S/S/15 is a RF Antennas manufactured by Siretta Ltd. 5G/4G/3G/2G YAGI ANTENNA SMA FEM. Key specifications: mounting type Bracket Mount, termination SMA Female, power - max 50 W, frequency range 600MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.2GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.5GHz.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 780MHz, 1.94GHz, 2.3GHz, 2.6GHz, 3.4GHz |
| Frequency Range | 600MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.2GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.5GHz |
| Antenna Type | Yagi |
| Number of Bands | 5 |
| VSWR | 1.3 |
| Return Loss | - |
| Gain | 7dBi, 8dBi |
| Power - Max | 50 W |
| Features | Cable - 5m |
| Termination | SMA Female |
| Ingress Protection | - |
| Mounting Type | Bracket Mount |
| Height (Max) | 1.378" (35.00mm) |
| Applications | GSM, LTE, UMTS |
