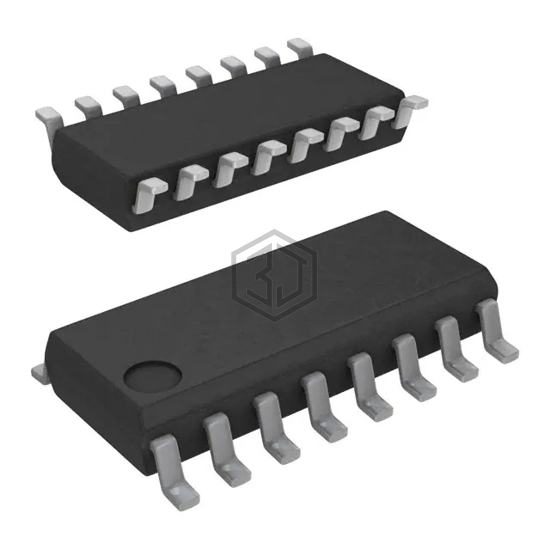

IC MCU 8BIT 16KB FLASH 16SOIC
C8051F809-GS is a Embedded - Microcontrollers manufactured by Silicon Labs. IC MCU 8BIT 16KB FLASH 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 3.6V, package / case 16-SOIC (0.154", 3.90mm Width).
In Stock: 37
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 25MHz |
| Connectivity | SMBus (2-Wire/I²C), SPI, UART/USART |
| Peripherals | Cap Sense, POR, PWM, WDT |
| Number of I/O | 13 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
C8051F809-GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| C8051F861-C-GS | Silicon Labs | IC MCU 8BIT 4KB FLASH 16SOIC | 97% | View |
| C8051F812-GUR | Silicon Labs | IC MCU 8BIT 8KB FLASH 24QSOP | 96% | View |
| C8051F967-B-GM | Silicon Labs | IC MCU 8BIT 32KB FLASH 40QFN | 87% | View |
| C8051F221-GQ | Silicon Labs | IC MCU 8BIT 8KB FLASH 32LQFP | 87% | View |
| S9S12GA192F0CLH | NXP USA Inc. | IC MCU 16BIT 192KB FLASH 64LQFP | 73% | View |
| S9S12G128AMLLR | NXP USA Inc. | IC MCU 16BIT 128KB FLASH 100LQFP | 70% | View |
Submit your RFQ for C8051F809-GS and get a quote within 24 hours.
