PWR XFMR LAMINATED 20VA TH

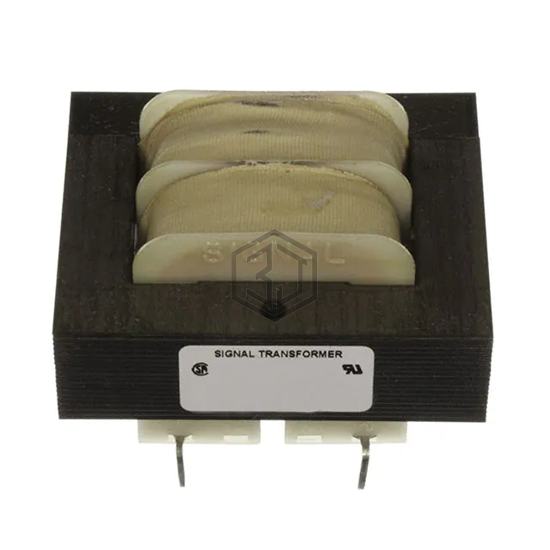

ST-6-56 is a Power Transformers manufactured by Signal Transformer. PWR XFMR LAMINATED 20VA TH. Key specifications: mounting type Through Hole, current - output (max) Parallel 700mA, Series 350mA, size / dimension 57.20mm L x 47.60mm W, termination style PC Pin.
In Stock: 8,699
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Laminated Core |
| Voltage - Primary | 115V |
| Voltage - Secondary (Full Load) | Parallel 28V, Series 56V |
| Current - Output (Max) | Parallel 700mA, Series 350mA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Dual |
| Center Tap | No |
| Power - Max | 20VA |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Size / Dimension | 57.20mm L x 47.60mm W |
| Height - Seated (Max) | 36.90mm |
| Voltage - Isolation | 2500Vrms |
| Weight | 0.8 lb (362.87 g) |
Submit your RFQ for ST-6-56 and get a quote within 24 hours.
