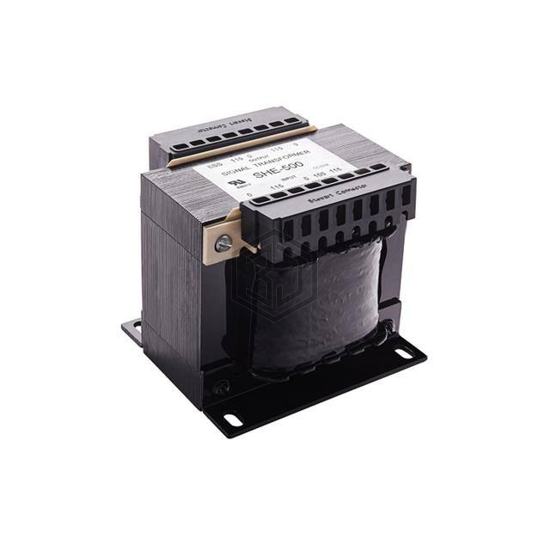

SHE-500 - Signal Transformer - Power Transformers

SHE-500

Signal Transformer

PWR XFMR LAMINATED 500VA CHAS MT

SHE-500 is a Power Transformers manufactured by Signal Transformer. PWR XFMR LAMINATED 500VA CHAS MT. Key specifications: mounting type Chassis Mount, current - output (max) Parallel 4.4A, Series 2.2A, size / dimension 137.20mm L x 127.00mm W, termination style Terminal Block.

In Stock: 4,689

Product Attributes

AttributeValue
Product StatusActive
TypeLaminated Core
Voltage - Primary100V, 115V, 215V, 230V
Voltage - Secondary (Full Load)Parallel 115V, Series 230V
Current - Output (Max)Parallel 4.4A, Series 2.2A
Primary Winding(s)Dual, Multiple Taps
Secondary Winding(s)Dual
Center TapNo
Power - Max500VA
Mounting TypeChassis Mount
Termination StyleTerminal Block
Size / Dimension137.20mm L x 127.00mm W
Height - Seated (Max)120.70mm
Voltage - Isolation4000Vrms
Weight18 lbs (8.2 kg)

Frequently Asked Questions

SHE-500 is a Power Transformers manufactured by Signal Transformer. PWR XFMR LAMINATED 500VA CHAS MT

The mounting type of SHE-500 is Chassis Mount.

The current rating of SHE-500 is Parallel 4.4A, Series 2.2A.

The size of SHE-500 is 137.20mm L x 127.00mm W.
