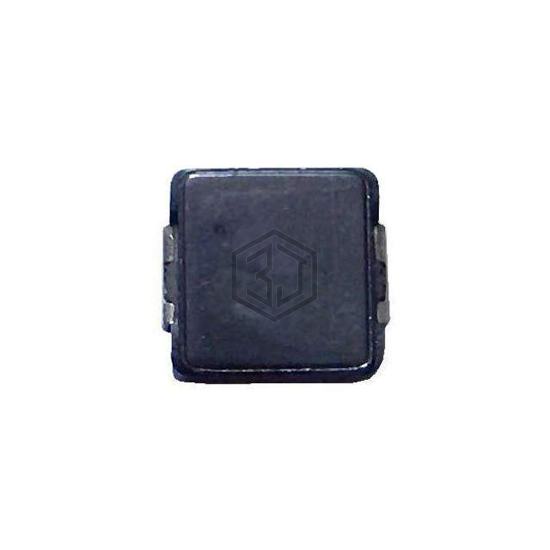

FIXED IND 10UH 10A 18.5 MOHM SMD
SCIHP1367-100M is a Fixed Inductors manufactured by Signal Transformer. FIXED IND 10UH 10A 18.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 10 A.
In Stock: 3,014
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 10 A |
| Current - Saturation (Isat) | 15.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 18.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 200 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.543" L x 0.508" W (13.80mm x 12.90mm) |
| Height - Seated (Max) | 0.264" (6.70mm) |
