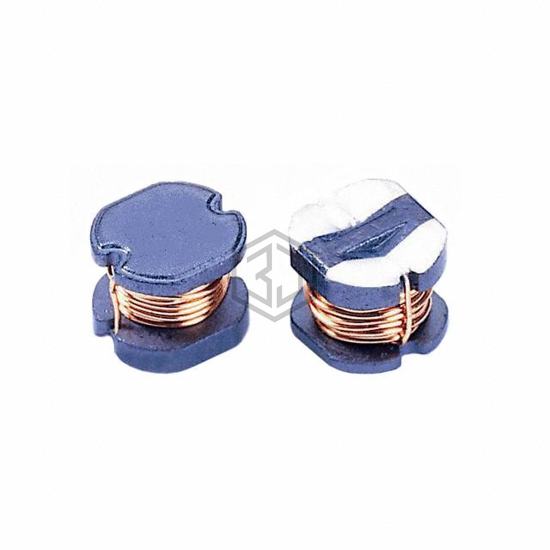

FIXED IND 18UH 1.65A 150MOHM SMD
SC54-180 is a Fixed Inductors manufactured by Signal Transformer. FIXED IND 18UH 1.65A 150MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.65 A.
In Stock: 1,386
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 18 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.65 A |
| Current - Saturation (Isat) | 1.23A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.240" L x 0.217" W (6.10mm x 5.50mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for SC54-180 and get a quote within 24 hours.
